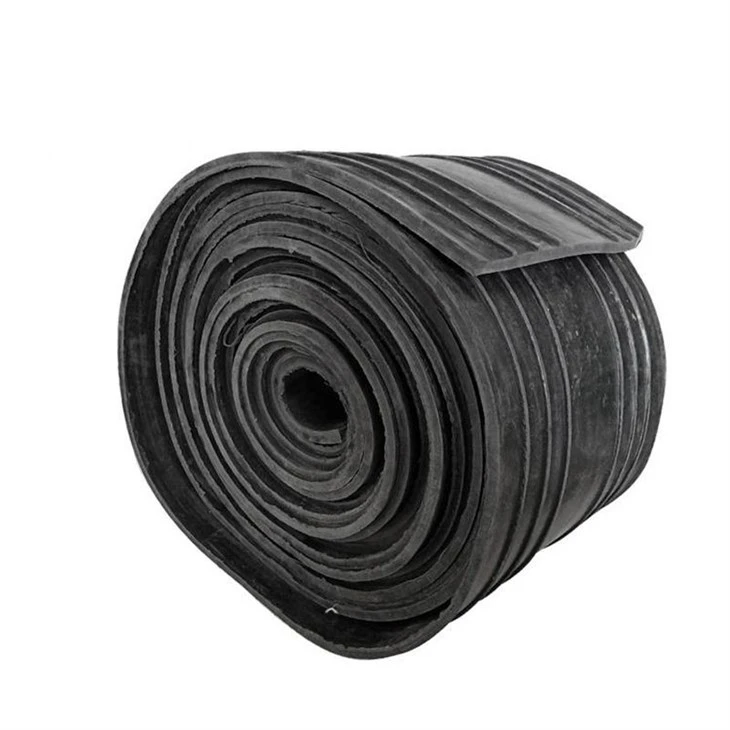

Flexible Water Stop
Description
Technical Parameters
Concrete structures contain various joints, such as construction joints, expansion joints, and settlement joints. These joints are potential pathways for water ingress.

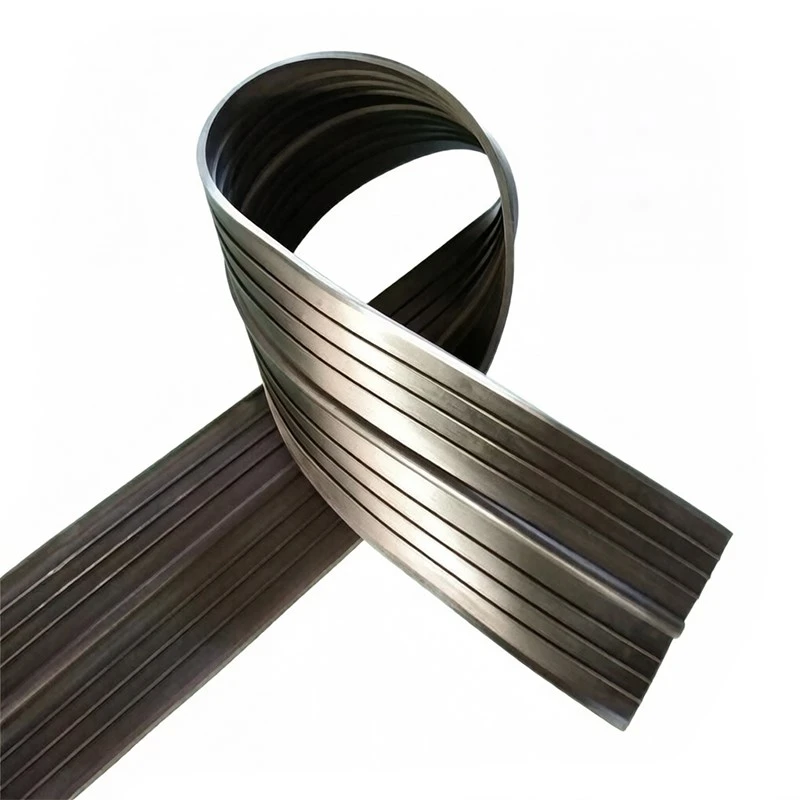

Our flexible water stop is designed to prevent water penetration through these joints. It is installed before concrete pouring. Once the concrete is cast, it encases the water stop, and the system becomes an integral part of the structure, providing internal sealing of the joint.
We offer three types of water stops:
- Elastic rubber type, which provides high flexibility and elongation
- Swelling type, which expands upon contact with water to fill gaps
- Steel-edge type, which provides enhanced structural strength
The appropriate type can be selected according to project requirements.
How This Flexible Water Stop Accommodates Structural Movement
Buildings are subject to continuous movement, including settlement, thermal expansion in high temperatures, and contraction in low temperatures. These movements occur at joint locations.
Our flexible water stop is designed to accommodate such movement. Rubber-based types offer elongation of ≥300%, ensuring resistance to tearing or displacement during structural deformation.
The product also withstands significant hydrostatic pressure. Medium embedded types provide resistance of 0.6–1.2 MPa, while steel-edge types offer higher performance.
Rubber-based water stops typically provide a service life of 10–20 years in underground or outdoor environments. Steel-edge types offer extended durability.
The system is compatible with concrete, steel, and masonry structures.
Installation and Factory Information
The flexible water stop is installed prior to concrete pouring. It is positioned and fixed at the joint location. Concrete is then cast around it, fully embedding the material. After curing, a continuous watertight sealing system is formed.
Please refer to the table below for detailed specifications. Our factory has been manufacturing waterproofing materials for 12 years. We operate an in-house laboratory and are ISO 9001 certified. We are a specialized and innovative enterprise and serve as a vice chairman unit of the Hebei Building Waterproof Association. We have supplied projects for China Railway and China State Construction. We support OEM services, provide free samples, and offer a one-year warranty.
Technical Parameters
|
Parameter |
Value |
|
Product Code |
JRJH-ZSD-048 |
|
Application Area |
Construction joints, expansion joints, settlement joints, pipe penetrations |
|
Product Types |
Elastic rubber / Swelling / Steel-edge |
|
Material |
Natural rubber / EPDM / Butyl rubber / Metal composite |
|
Water Pressure Resistance |
0.6–1.2 MPa (medium embedded type); higher for steel-edge type |
|
Elongation |
≥300% (rubber-based types) |
|
Tensile Strength |
≥10 MPa (varies by type) |
|
Durability |
Rubber: 10–20 years underground/outdoor |
|
Installation Method |
Pre-installed (embedded in joint) |
|
Minimum Order |
Negotiable |
