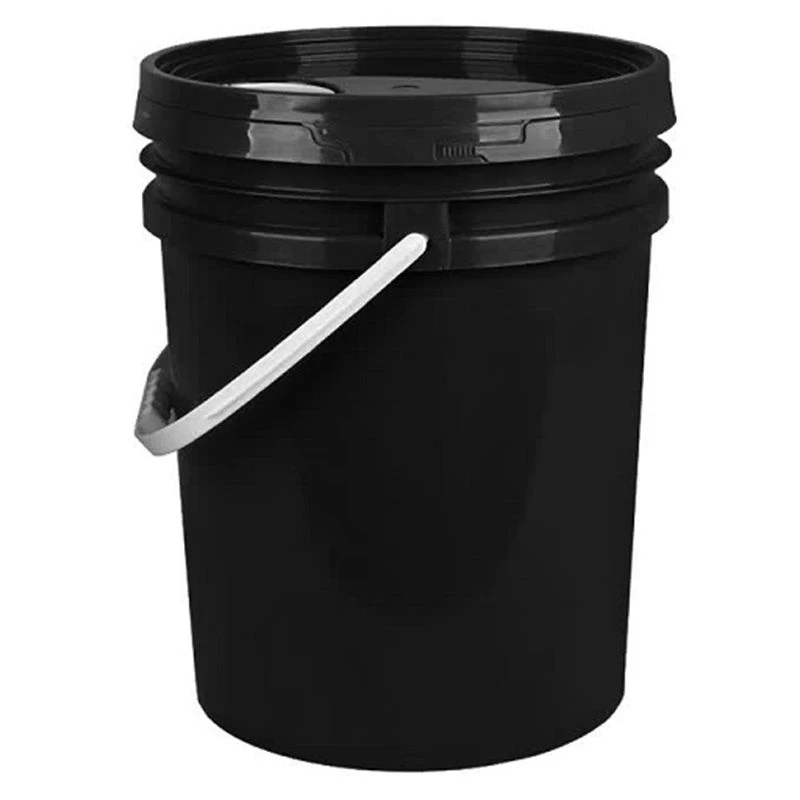

Below-grade Waterproofing Coating
Description
Technical Parameters
Underground engineering operates under complex environments of high water pressure, high humidity and soil corrosion with extremely high requirements on water immersion resistance and anti-seepage grade of coatings. Below-grade waterproofing coating is a high-performance waterproof product specially developed for harsh underground working conditions. Our below-grade waterproofing coating adopts modified polyurethane and cement composite formula. After film formation, it forms dense cross-linked structure with anti-seepage grade above P10. After 180 days of continuous water immersion, performance retention rate exceeds 94%, far superior to industry average. It can be constructed directly on damp base surfaces without standing water, perfectly adapting to humid and tight construction environment of underground projects. It has been applied in dozens of subway stations, underground pipe galleries and large basement projects nationwide with stable waterproof effect even in high underground water level areas.
Traditional underground waterproofing mostly adopts single membrane scheme with difficult joint treatment leading to easy water channeling. Our coating can form composite waterproof system matched with membranes: coating seals base and membrane serves as main waterproof layer to greatly improve waterproof reliability. Anti-microbial and anti-soil corrosion components are added into the formula to avoid mold and degradation in dark and humid underground environments with service life synchronized with building structure. For agents, this product is core matching material of underground waterproof system. Matched with our waterproof membranes for bundled promotion, it can provide complete underground waterproof solutions to improve project bidding success rate and single project output, very suitable for agents targeting municipal and large real estate projects.
Specification Parameters
|
Parameter Item |
Index (Special Underground Type) |
|
Product Type |
Two-component composite modified type |
|
Solid Content |
≥90% |
|
Tensile Strength |
≥1.8MPa |
|
Breaking Elongation |
≥350% |
|
Anti-Seepage Grade |
≥P10 |
|
Performance Retention Rate after 180d Water Immersion |
≥94% |
|
Surface Drying Time |
≤12h |
Application Fields
√ Waterproofing of base slabs and top slabs of basements
√ Structural waterproofing of subway stations and underground pipe galleries
√ Anti-seepage and moisture-proofing of civil air defense projects and underground parking lots
√ Lining waterproofing of tunnels and culverts
√ Anti-seepage of underground water tanks and pump houses
√ Underground engineering works in high underground water level areas
Factory Strength
We are a source manufacturer with 12 years of R&D and production experience in underground waterproof products, covering a plant area of 16,000㎡ with independent engineering coating workshops equipped with automatic batching, dispersing and filling production lines, with a monthly output of 200 tons of various waterproof coatings. The factory has an independent R&D center and testing laboratory capable of completing special underground tests such as long-term water immersion and anti-seepage grade. We maintain long-term strategic cooperation with Fortune Global 500 enterprises including China State Construction, China Railway and China Railway Construction Corporation. Our products are widely used in national key underground projects such as subways, high-speed railways and municipal pipe galleries with rich experience in bulk supply and technical service for large projects. By cooperating with us, you can obtain stable production capacity, reliable quality and special technical support for underground works to easily cope with various complex working conditions.
Qualification Certifications
Our below-grade waterproofing coating is produced in strict accordance with GB/T 19250 and other national standards, and has passed ISO9001 Quality Management System Certification and ISO14001 Environmental Management System Certification with qualified product performance and environmental indicators. We can provide complete testing reports issued by third-party authoritative institutions covering anti-seepage grade, water immersion resistance, corrosion resistance and mechanical properties, and coordinate CE, SGS and other international certifications according to export market demands. We are a member of China Waterproof Building Materials Association and standing director unit of Hebei Waterproof Building Materials Association. Our products have won many honors including Recommended Products for National Engineering Construction, serving as qualified suppliers for many large construction groups. These certifications are powerful quality proof and important endorsements for bidding underground projects and developing large clients.
Quality Control
We set internal quality control standards stricter than national standards for below-grade waterproofing coating. Raw materials such as resin, cement and fillers pass special water and corrosion resistance testing upon entry, and unqualified raw materials are rejected. During production, reaction temperature, dispersion speed and feeding sequence are fully monitored to ensure uniform cross-linking degree and stable performance of each batch. Before delivery, finished products pass 7-day accelerated water immersion test simulating long-term underground immersion, and batches with excessive performance attenuation are all reworked. A complete quality traceability system is established with unique batch number for each batch traceable to raw material source, production time and testing records. We accept on-site inspection by third-party institutions, and all delivered products come with complete inspection reports and certificates. Within the 1-year warranty period, we take full responsibility for all quality problems.
Hot Tags: below-grade waterproofing coating, China below-grade waterproofing coating manufacturers, suppliers, factory
