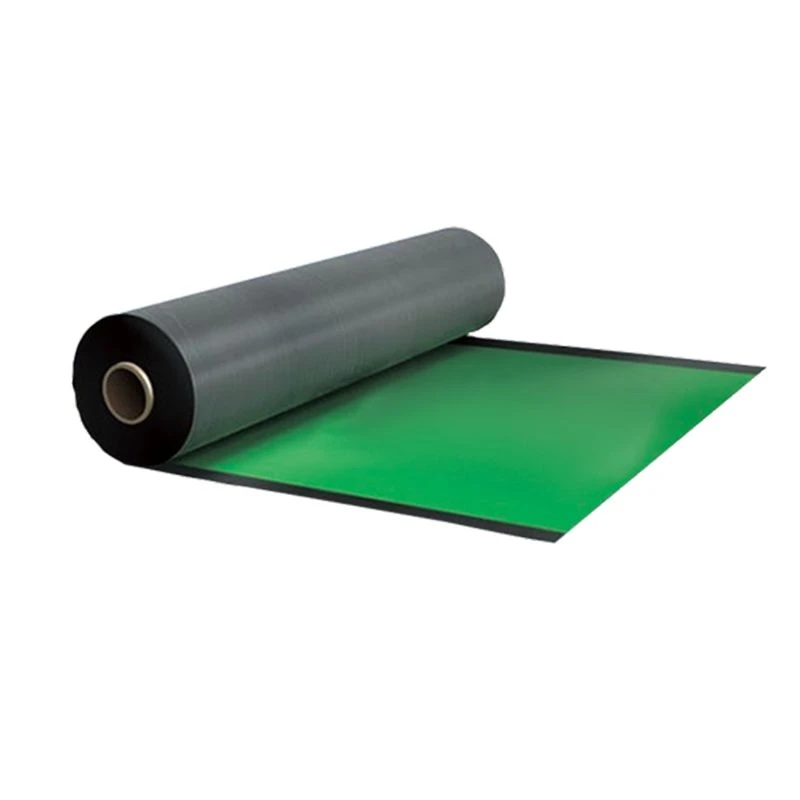

Cross Laminate Reactive Membrane
Description
Technical Parameters
This cross-laminated reactive membrane consists of a dual-layer HDPE film system. Two HDPE films are laminated at a 45° cross orientation, forming a high-strength composite structure.
Compared with conventional single-layer polyethylene films, this cross-laminated structure significantly improves tear resistance and puncture resistance, while maintaining excellent dimensional stability under thermal exposure.
A reactive modified bitumen adhesive layer is applied on both sides of the membrane.
Reactive Bonding Mechanism with Concrete Substrates
The adhesive layer of this cross-laminated reactive membrane is designed to chemically and physically bond with cementitious materials.
When installed against fresh cementitious slurry or concrete, a dual bonding mechanism occurs:
- Physical adhesion through mechanical interlocking
- Chemical reaction between modified bitumen and cement hydration components
This results in a fully bonded system that eliminates lateral water migration between membrane and substrate.
The system is therefore resistant to water channeling and provides long-term waterproof integrity.
Additionally, the membrane exhibits self-sealing properties for minor punctures below 2 mm, enhancing overall system durability.
Installation Flexibility and System Applications
This cross-laminated reactive membrane supports multiple installation methods depending on project conditions:
- Wet application using cementitious slurry on damp substrates
- Dry application on prepared surfaces
- Loose-laid installation for specific roofing systems
- Pre-applied installation for cast-in-place concrete systems
The system is suitable for sloped roofs, green roofs, and below-grade waterproofing applications.
The membrane is available in 1 meter and 2 meter widths, reducing seam quantity and improving installation efficiency.
Manufacturing Capability and Technical Assurance
Our factory operates four production lines with advanced composite membrane manufacturing capability. We maintain strict quality control and conduct full inspection of each roll before packaging.
We are ISO9001 certified and provide OEM services, free samples, and third-party inspection support.
The minimum order quantity is 100 square meters per specification. Standard lead time is 7 days.
Technical Parameters
|
Parameter |
Value |
|
Product Code |
JRJH-JC-017 |
|
Reinforcement Layer |
45° cross-laminated HDPE film |
|
Adhesive Layer |
Reactive modified bitumen (double-sided) |
|
Release Film |
Yes |
|
Thickness |
1.2 mm / 1.5 mm / 2.0 mm |
|
Width |
1 m / 2 m |
|
Roll Length |
20 m |
|
Tear Strength |
High |
|
Elongation |
≥180% |
|
Low Temperature Flexibility |
-25°C |
|
Heat Resistance |
80°C |
|
Installation Methods |
Wet / Dry / Loose / Pre-applied |
|
MOQ |
100 m² per specification |
